Traffic Safety Mirror 80 cm Red-White and 2 m Galvanized Flanged Pole Set (12227 TGA+GYD001)

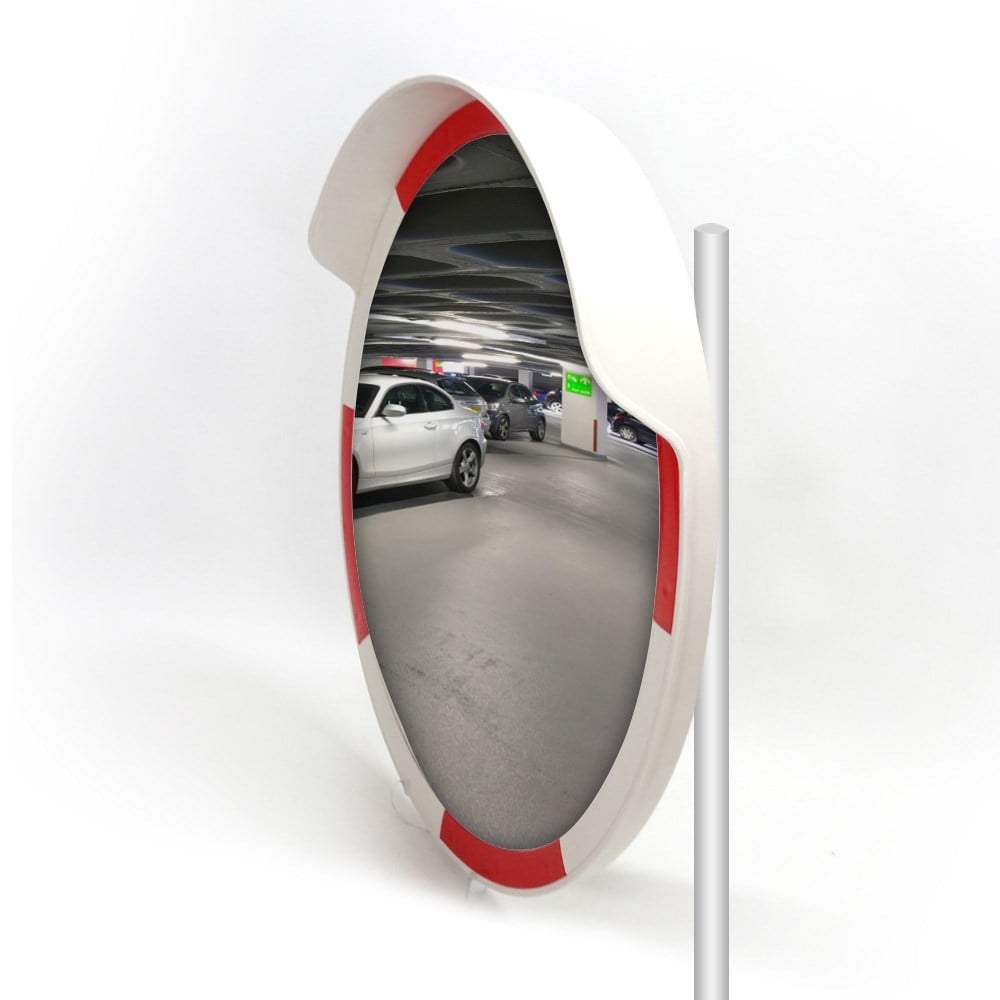

Traffic Safety Mirror 80 cm Red-White and 2 m Galvanized Flanged Pole Set

Are you tired of rusting poles, cracking mirror bodies, or shattered glass mirrors? This professional safety set offers long-lasting, maintenance-free materials (Acrylic, PPC, and Galvanized steel) in a single package. It is an ideal solution with both an 80 cm wide viewing angle and a 2-meter standard mounting height.

Why Choose This Durable Set?

• Shatterproof Acrylic Lens: Reduces the risk of glass breakage to zero. The 2 mm thick Acrylic (ISO 179/1fu) material is fully resistant to light impacts in parking lots and harsh external conditions with its 15 kj/m² impact resistance.
• Rustproof Galvanized Pole: The 2-meter pole included in the set does not corrode or rust for years thanks to its hot-dip galvanized coating. With its flanged structure, it is mounted by screwing it into concrete or asphalt floors without the need for digging.
• UV-Protected PPC Body: The mirror’s UV-resistant PPC body and integrated hooded design do not fade or crack in the most extreme outdoor conditions (-20°C/+60°C), while protecting the mirror surface from rain and sun.
• Wide Area Control: Its 80 cm diameter offers a much wider viewing angle (>150°) and an effective viewing distance of 12–16 meters compared to 60 cm models.
• Safe Delivery: The mirror surface is shipped covered with a special protective film to prevent scratches until the moment of installation.

Where to Use?

This convex mirror and pole set, with its wide 80 cm view, is specifically designed for the following areas:

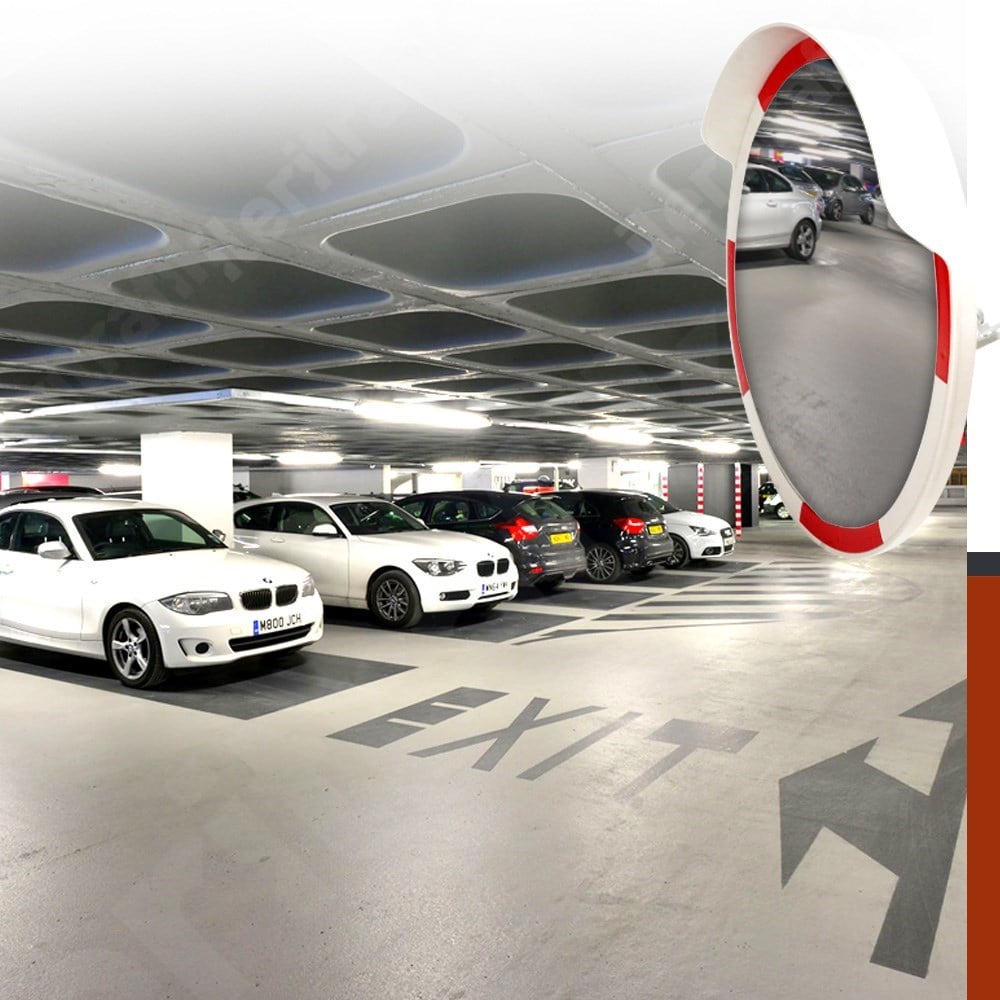

• Residential and factory sites, large parking lot exits.
• Areas with forklift/van traffic in warehouses and logistics centers.
• Road junctions and wide-angle blind spot intersections.

Mounting and Package Contents

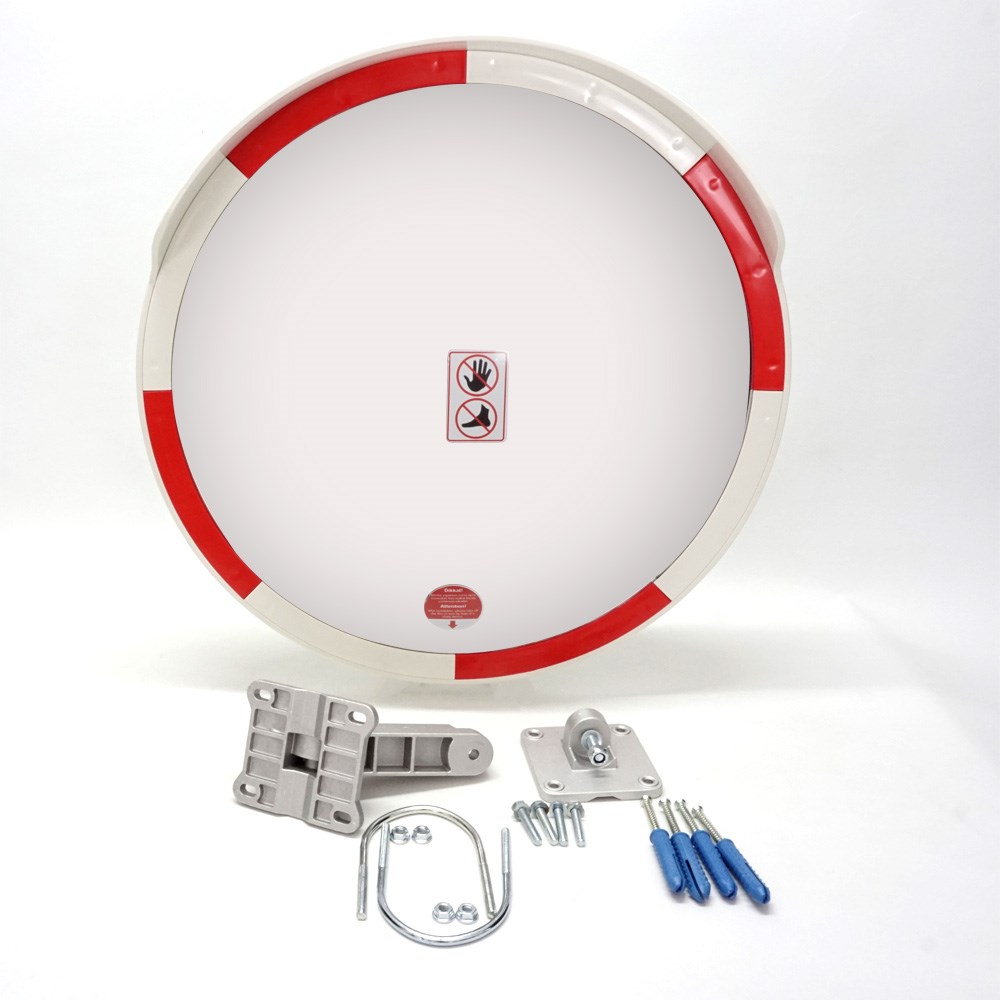

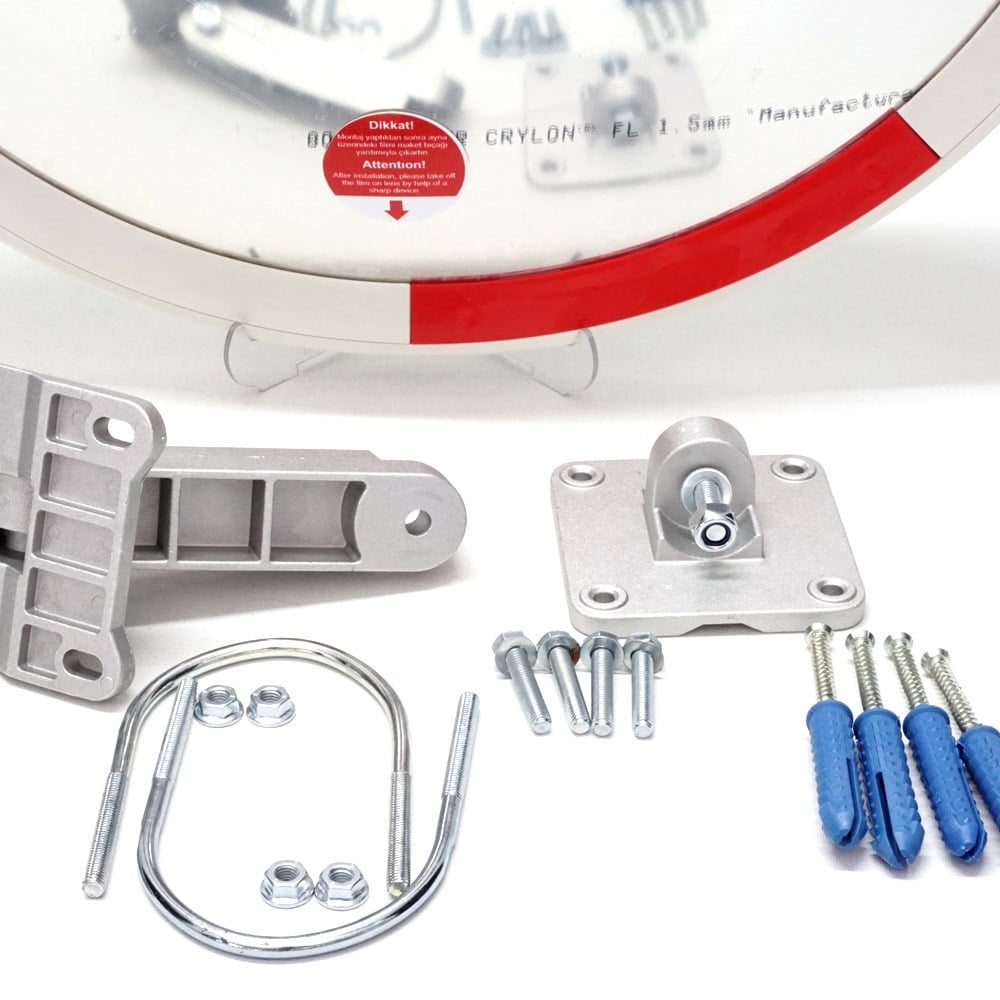

• All-Inclusive Package: The set includes the special clamp bracket required to connect the mirror to the pole and the trifon screws and wall plugs required to fix the pole to the ground, sent free of charge.

Set Content and Technical Specifications

1. Mirror (12227 TGA)

• Diameter: Ø 80 cm
• Mirror Material: 2 mm Acrylic Lens (Shatterproof)
• Body Material: PPC (Hooded Design)
• Weight: ~ 5.5 kg
• Color: White-Red Frame
• Viewing Distance: 12 m – 16 m
• Viewing Angle: >150°

2. Pole (GYD001)

• Length: 2 meters (200 cm)
• Pipe Diameter: Ø 60 mm (6 cm)
• Profile Wall Thickness: 2 mm
• Material: Hot-Dip Galvanized Pipe
• Mounting Type: Flanged (Screwing to the Ground)

HS Code: 3926.90.97.90.29
