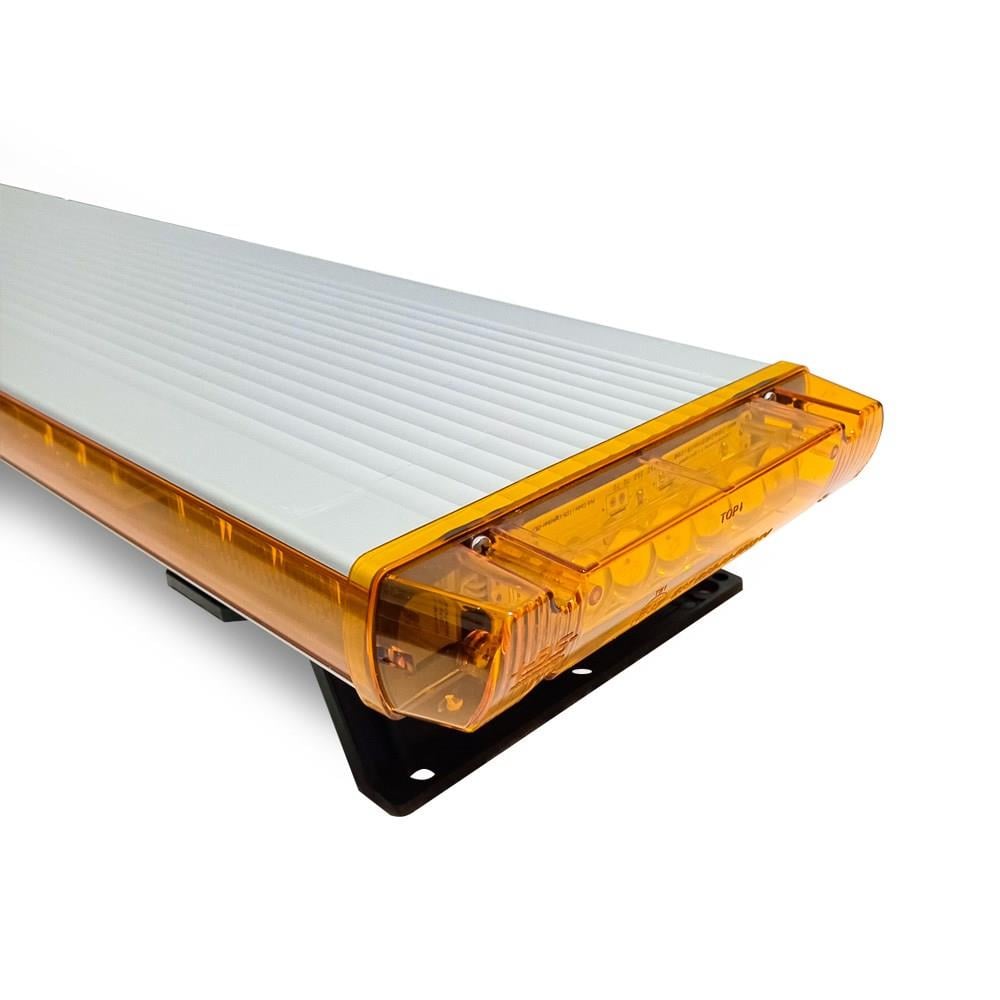

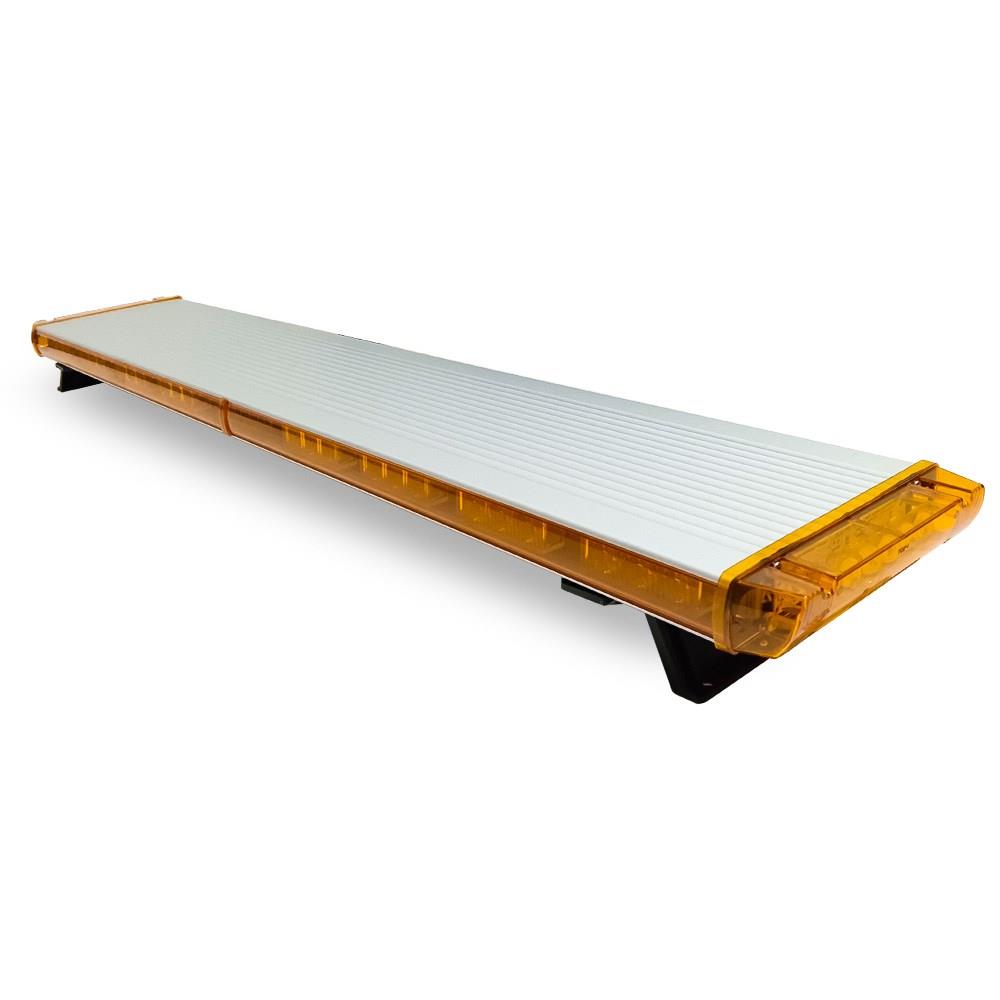

The Sharp P-124 is a slim, high-performance LED police beacon designed for maximum visibility and durability. Its aluminium body, transparent polycarbonate lens, and Edison 3W High Power LEDs ensure long-lasting, high-intensity lighting for all emergency and law enforcement vehicles.
-
Dual-colour LED design (Yellow/Yellow)
-
Equipped with Edison 3W High Power LEDs
-
LEDs are of the same brand and model within each colour group
-
UV-free LED lighting for safe and clear illumination
-
No electrical connection between the LED’s thermal pad and anode/cathode
-
All LEDs operate between 200 and 350 mA
-
Each LED features a collimator lens for focused brightness
-
Uniform light distribution across the entire optical surface
-
Homogeneous light transmittance through the polycarbonate lens
-
Aluminium top and bottom housing — single-piece design for superior durability
-
Optical lenses ensure horizontal light spread for maximum visibility
-
Low current consumption extends LED lifetime
-
Corrosion-resistant stainless steel mounting accessories (brackets, bolts, nuts, washers)
-
Slim, aesthetic design suitable for any vehicle type
-
Standard lengths available to fit various vehicle roofs
-
No side street illumination feature
-
Made of UV- and weather-resistant polycarbonate side covers for long life
-
Aluminium chassis for maximum strength and durability
-
Uses power LEDs rated for 135°C connection temperature
💡 Reliable, efficient, and built to last — the Sharp P-114 delivers exceptional visibility for police and emergency vehicles.
Technical Features
Dimensions: 114 or 123 × 280 × 28 mm
Operating Voltage: 12 VDC – 28 VDC
Operating Temperature: -55°C to +65°C
Current Draw: Max. 1.8 A
Flashing Pattern: 4 flashes × 77 cycles per minute
Number of Animation Modes: 13
LED Lifespan: 100,000 hours
Wavelength: 620–645 nm
Weight: 12 kg
Lens Cover Colour: Transparent (Clear)
Protection Level: IP65
HS Code: 9405.61.80.00.00
