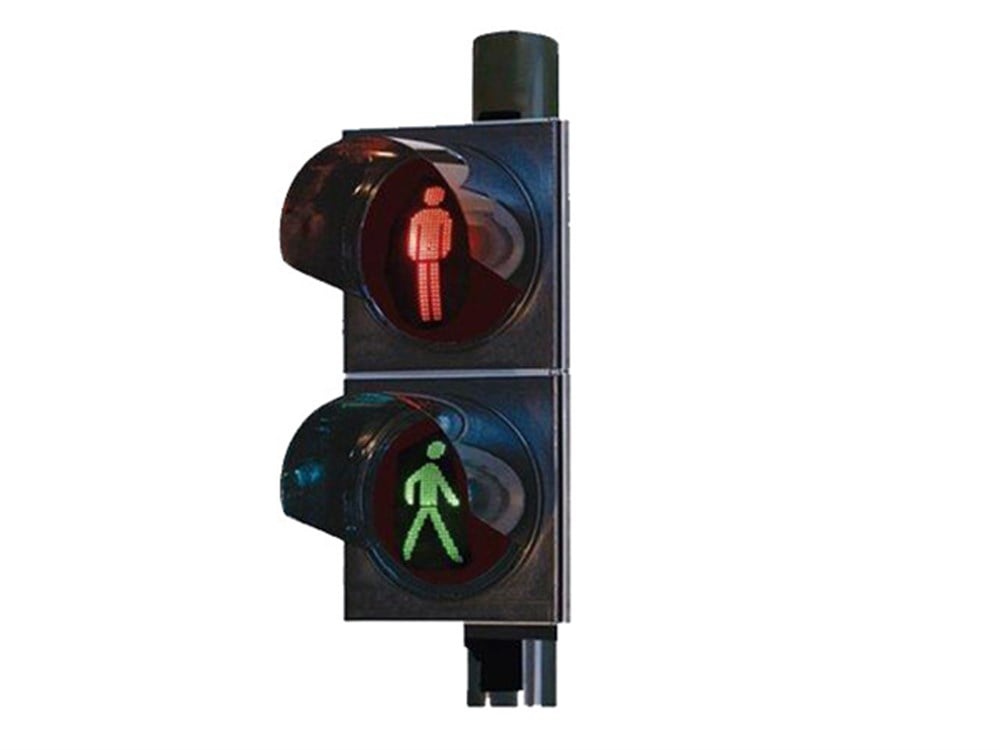

200 mm Power LED Pedestrian Signal Light
The 200 mm Power LED Pedestrian Signal Light is designed to ensure the safe crossing of pedestrians in areas with heavy traffic flow.
This Class-3 non-distractive signal unit operates with Power LEDs and has different output voltage options. The product consumes 2 × 7W and uses a grey honeycomb lens. The housing is manufactured from 100% polycarbonate material and is available in Black as standard. With an operating temperature range of -40°C to +60°C, it is suitable even for extreme conditions.

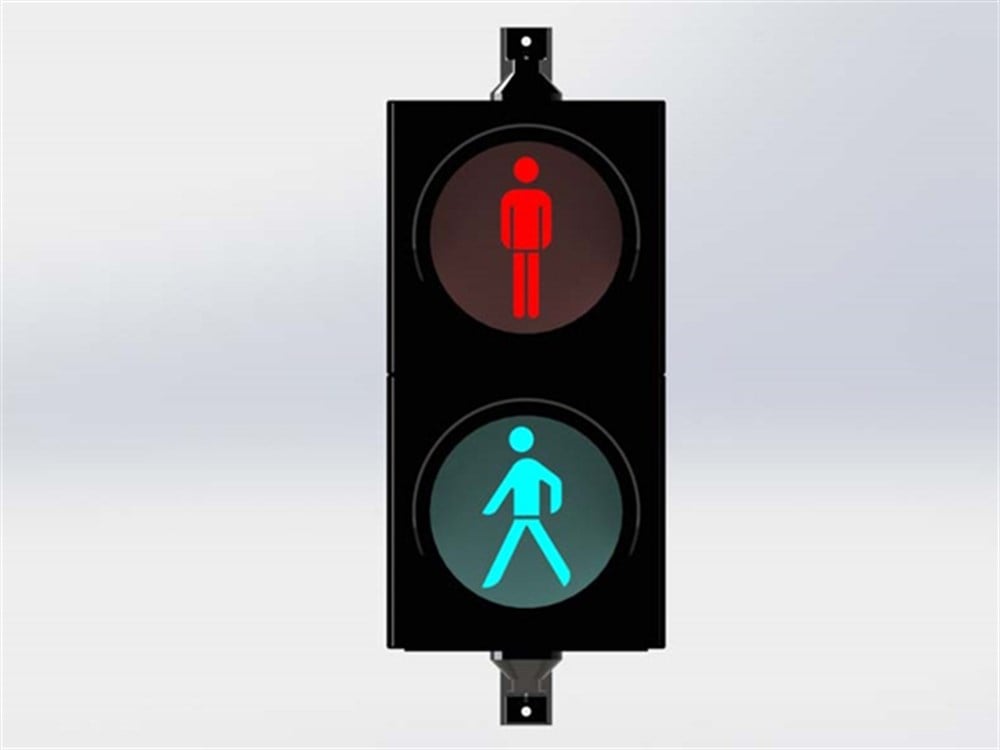

The pedestrian signal comes with a standing man (red) and a walking man (green) masks. It complies with TS EN standards and is resistant to water and dust with IP55-rated modules.
It can be synchronised with accessories such as:
One 115 × 135 mm mounting clamp is supplied with the unit.

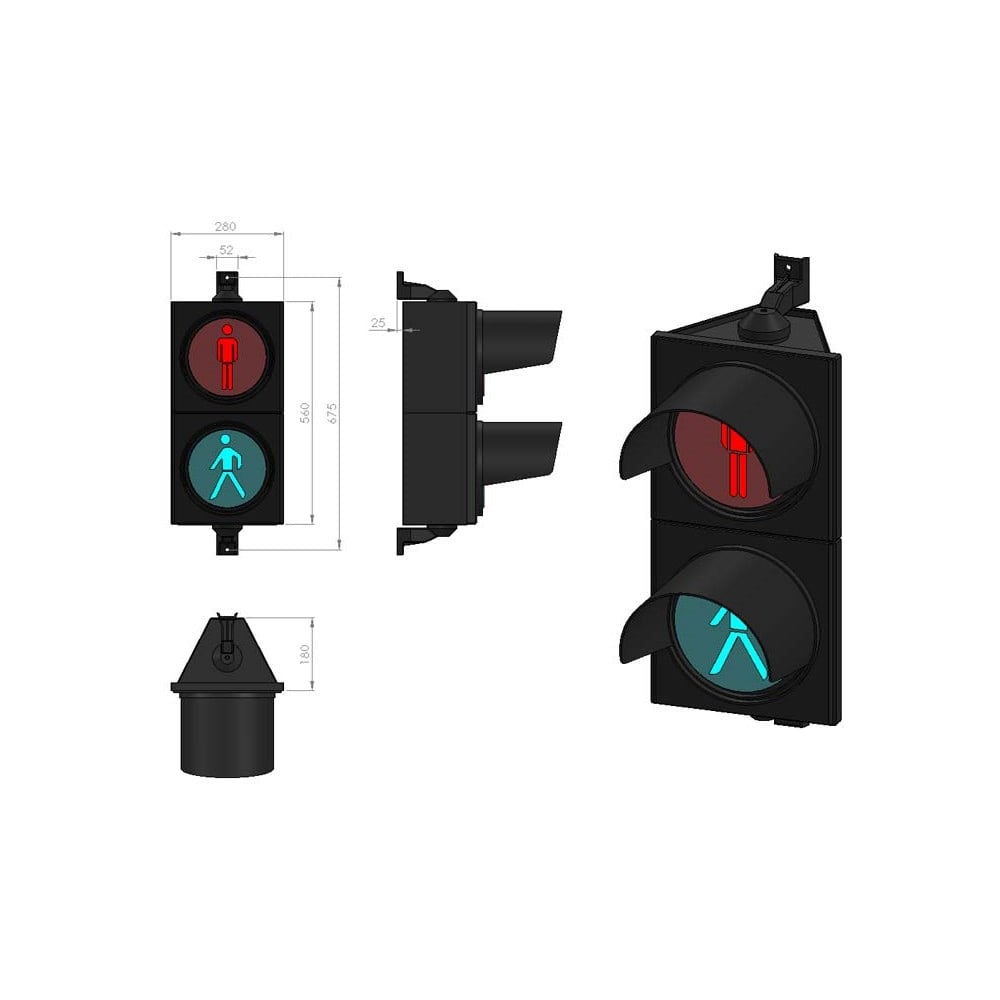

Technical Features
Diameter: 200 mm
Housing Width: 28 cm
Housing Height: 67,5 cm
Housing Length: -
Housing Material: Polycarbonate ( 100% PC)
Weight: 5,5 kg
Housing Colour: Black
LED: Power LED, Red, Green, Yellow
Power Consumption: 7 Watts / Module
Certification: TS EN 12368: 2015, IP 55
HS Code: 8530.80.00.00.12
