Delineator 75 x 8 cm 100% TPU, Flexible Bollard (12212 UB R)

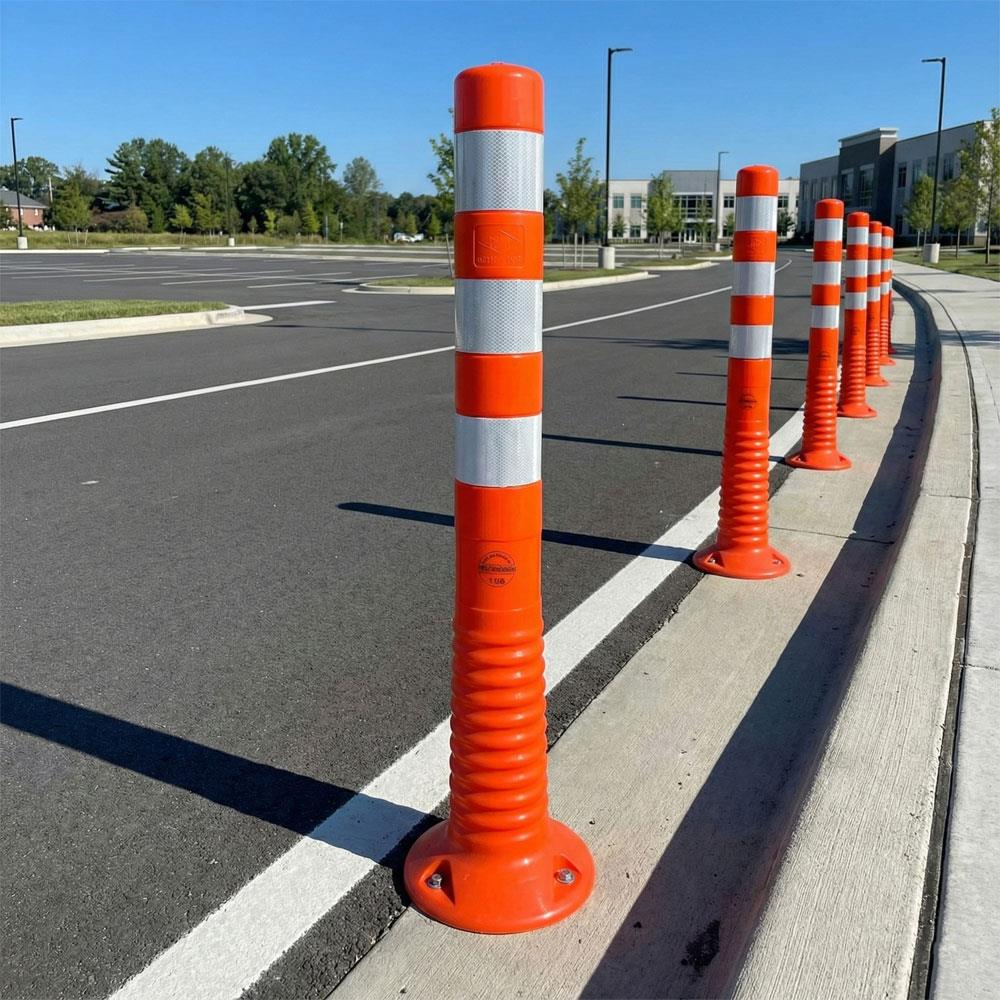

Delineator 75 x 8 cm 100% TPU - Bellowed Flexible

Are you looking for a maintenance-free system that protects itself against vehicle impacts on urban roads and construction sites? Developed for road conditions, the 75 cm 100% TPU Bellowed Delineator features a Bellowed Foot design that goes beyond standard bollards. Thanks to its special formula resistant to temperatures between -20°C and +60°C, it does not soften in summer or harden and crack in winter.

Why Choose This "Bellowed TPU" Bollard?

• Zero Damage with Bellowed Foot: The special bellowed (accordion) structure at the base of the product allows the body to lie down completely when hit by a vehicle and return to an upright position after the vehicle passes. This mechanism minimizes potential damage to the body during impact.
• High Reflective Performance: The High Intensity Grade reflective tapes used on the body provide maximum safety by powerfully reflecting vehicle headlights even when night visibility is poor.
• 100% TPU Material Quality: Manufactured with a UV-additive special color mixture, the TPU body maintains its bright orange color and flexibility even when exposed to sunlight.
• Modular Upgrade Capability: This product has a modular infrastructure. Depending on your needs, you can upgrade the product by using the Delineator Adapter (sold separately):
  • Attach plastic signboards to the top for guidance.
  • Mount solar flashers for active nighttime alerts.
  • Attach chains with a special hook to create a security perimeter.

Application Areas

Thanks to its bellowed structure and high durability, it is safely preferred in the following areas:

• Urban main arteries and lane separation points
• Maintenance, repair, and road construction sites
• Intersections with heavy traffic
• Gas stations and facility entrances
• Construction areas where safety is critical

Technical Information

• Height: 75 cm
• Body Thickness: Ø 80 mm
• Base Width: Ø 200 mm
• Product Weight: 1.30 kg
• Material: 100% TPU (UV-Additive, Bellowed)
• Temperature Resistance: -20°C / +60°C
• Reflective: High Intensity Grade (High Performance)
• Mounting: 3-Point Special Flanged Trifon Screw

Package Contents

• 1 Piece 75x8 cm Bellowed TPU Delineator
• Mounting Set: 3 Pieces Special Flanged Trifon Screws and Plastic Wall Plugs (Included for free).

⚠️ Important Note: Chains, signboards, flashers, and attachment adapters mentioned in the product text and images are not included in the price and are sold separately. To attach accessories to the product, you must obtain the separately sold "Delineator Adapter."

Installation Instructions

You can follow these steps to fix the product to the ground:

1. The bollard is placed on the point of installation, and the ground is marked through the 3 holes in the base.
2. The marked points are drilled with a drill, and the wall plugs are driven into their sockets.
3. Installation is completed by tightening the flanged trifon screws directly, without the need for an extra washer.

HS Code: 3926.90.97.90.29
