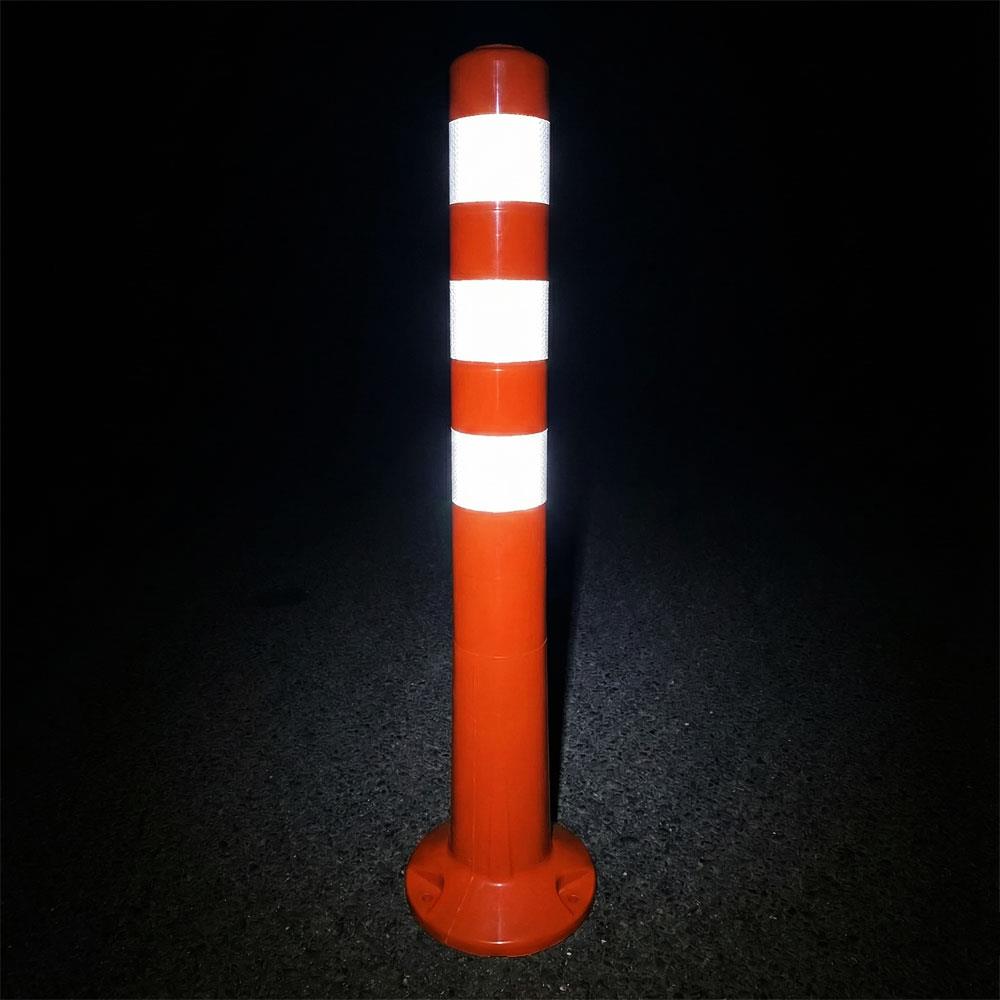

Delineator 70x8 cm TPE, Flexible Bollard (İLT7080E)

Delineator 70 x 8 cm TPE - Flexible Bollard

Are you looking for a practical product that does not take up much space at apartment and store entrances, or narrow areas within residential complexes? 70 cm Eco TPE Delineator, weighing approximately 0.60 kg, is the lightest and most portable model in the series. Thanks to its narrowed Ø 18 cm (180 mm) base structure, it provides maximum space saving by occupying minimum ground area.

Why Choose This "70 cm and Lightweight" Model?

• Compact Base (18 cm): Specifically manufactured with an 18 cm base diameter for narrow sidewalks or tight parking areas where standard 20-22 cm bases struggle to fit.
• Ultra-Lightweight Structure (~0.60 kg): Its lightness makes installation and transportation extremely effortless. It is ideal for temporary markings or indoor parking lots.
• Economic TPE Material: The budget-friendly TPE (Thermoplastic Elastomer) body prevents breakage by flexing during simple vehicle contacts. It has been developed for price/performance-oriented projects.
• Microprismatic Reflective: Microprismatic reflective tapes on the body create sufficient awareness by reflecting light in the dark of night.
• System Upgrade Options: You can transform the product into a warning station by attaching equipment such as signs and flashers to the top with an additional apparatus. It is recommended to use the Code 194 A Delineator Adapter sold separately. With this adapter you can:
  • Attach plastic warning signs to the top for guidance.
  • Mount a solar flasher for active nighttime alerts.
  • Attach a chain with a special hook to create a security perimeter.

Application Areas

With its compact and lightweight structure, it offers practical solutions in the following areas:

• Narrow sidewalks and pedestrian crossing points
• Entrances of private garages and buildings
• Lane separations in indoor parking lots
• Temporary event and organization areas
• Storefront display protection

Product Technical Specifications

• Height: 70 cm
• Body Thickness: 8 cm
• Base Diameter: Ø 180 mm
• Weight: ~ 0.60 kg
• Material: TPE
• Color: Orange
• Reflective: Microprismatic Tapes
• Mounting: 3-Point Screw and Wall Plug

Package Contents

• 1 Piece 70x8 cm Eco TPE Delineator
• Mounting Set: 3 Pieces Screws and Wall Plugs (Included for free).

Installation Instructions

You can follow these steps to fix the product to the ground:

1. The bollard is placed on the point of installation, and the ground is marked through the 3 holes in the base.
2. The marked points are drilled with a drill, and the wall plugs are driven into their sockets.
3. Installation is completed by tightening the screws.
