Delineator 100 x 8 cm TPU - Flexible Bollard (22036 UB R)

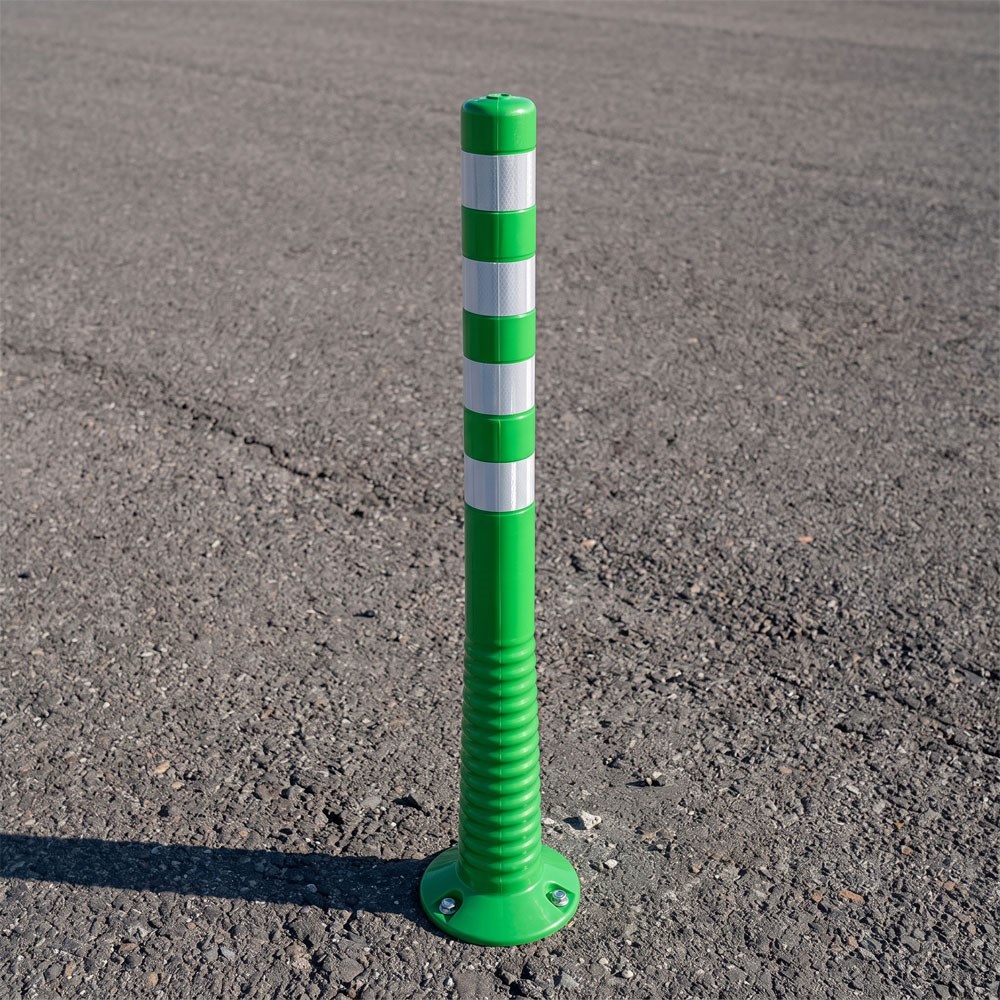

Delineator 100 x 8 cm TPU Green - Flexible Bollard

Are you looking for an aesthetic and high-security solution for residential roads, parks, or the green area perimeters? 100 cm Green TPU Delineator does not create visual clutter thanks to its color that integrates with nature, while its 1-meter height ensures it is easily noticed by drivers. The special horizontal and vertical pyramid patterns on its body provide the product with a mechanical bellowed feature, allowing it to flex during impact and return to its original form without breaking.

Why Choose This "Green and Long" TPU Bollard?

• Aesthetics in Harmony with Nature: The green color is the most ideal choice for landscaped areas, gardens, forest roads, and residential complexes. Instead of the "construction" perception created by orange bollards, it provides a boundary that is compatible with the environment.
• Bellowed Flexible Structure: The bellowed pattern on the body maximizes impact absorption. The bollard flexes upon vehicle contact and returns to an upright position after the vehicle passes.
• Maximum Visibility (100 cm): Its 1-meter structure, which is taller than standard bollards, does not get lost behind parked vehicles. Bright reflectives on the green surface create a clear warning line at night.
• System Upgrade Options: You can transform it into a warning station by attaching equipment such as signs and flashers with an additional apparatus on the top. Use of the separately sold 194 A Code Delineator Adapter is recommended to extend service life:
  • Attach plastic warning signs to the top for guidance.
  • Mount solar flashers for active nighttime alerts.
  • Attach chains with a special hook to create a security perimeter.

Application Areas

Thanks to the aesthetics of the green color and its flexible structure, it is frequently preferred in the following areas:

• Landscaped areas of residential and housing projects
• Parks, gardens, and picnic areas pathways
• Separation of bicycle paths
• Nature hotels and camping areas
• Electric vehicle charging stations (emphasizing green energy)

Product Technical Specifications

• Height: 100 cm
• Body Thickness: 8 cm
• Base Width: 20 cm
• Product Weight: 1.6 kg
• Material: TPU
• Color: Green
• Reflective: High Intensity Grade (High Performance)
• Mounting: 3-Point Special Flanged Trifon Screw

Package Contents

• 1 Piece 100x8 cm Green TPU Socket Delineator
• Mounting Set: 3 Pieces Special Flanged Trifon Screws and Plastic Wall Plugs (Included for free).

Installation Instructions

You can follow these steps to fix the product to the ground:

1. The bollard is placed on the point of installation, and the ground is marked through the 3 holes in the base.
2. The marked points are drilled with a drill, and the wall plugs are driven into their sockets.
3. Installation is completed by directly tightening the flanged trifon screws without the need for an extra washer.
