Delineator 100 x 8 cm TPE White, Flexible Bollard (22021 UB R)

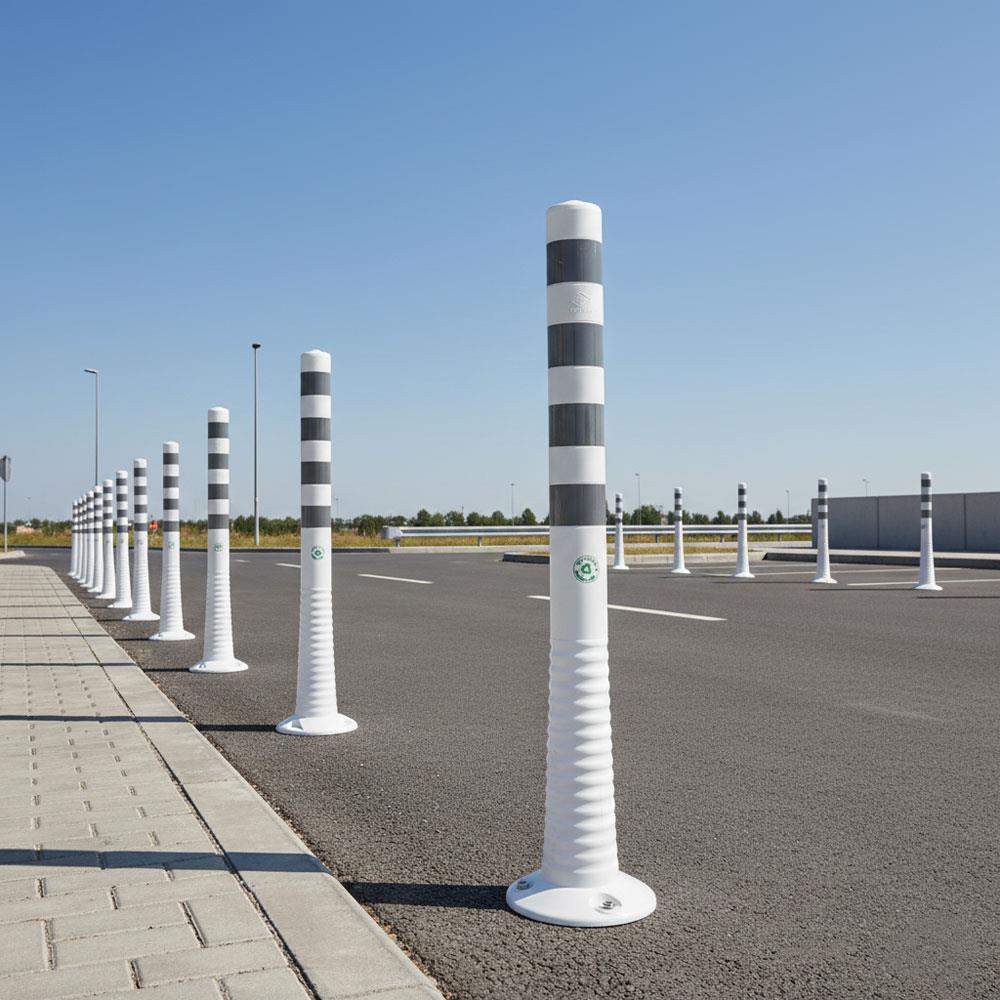

Delineator 100 x 8 cm TPE White - Bellowed Flexible Bollard

Are you looking for a solution that both creates a hygienic perception and draws attention for hospitals, food facilities, hotels, or roads dominated by dark asphalt? 100 cm White TPE S Bellowed Delineator represents cleanliness and order with its white color, unlike conventional orange bollards. Thanks to its TPE S (Soft) body and special Bellowed Foot system, the bellow flexes during vehicle impacts instead of the body, reducing damage to zero.

Why Choose This "White, Bellowed, and Long" Model?

• Advantage of White Color: The white color creates the highest contrast, especially on black asphalt, providing excellent awareness day and night. Additionally, it offers a clean and stylish appearance in hospitals, hotels, and residential complexes.
• Bellowed Base Design: The bellow system at the base of the product allows it to lean up to 90 degrees at the moment of impact and return to an upright position after the vehicle passes. This ''flexible'' structure extends the life of the product.
• Maximum Visibility (100 cm): Thanks to its 1-meter long height, it is easily noticed by drivers of high vehicles such as SUVs, minibuses, and pickup trucks.
• High Intensity Reflective Power: The High Intensity Grade (High Performance) reflective tapes applied on the white body powerfully reflect light in the dark of the night, creating a safe lane line.
• System Upgrade Options: An extra adapter must be used to attach lamps or signs to the top of this model. You can upgrade the product by using the Code 194 A Delineator Adapter sold separately. With this adapter you can:
  • Attach plastic warning signs to the top for guidance.
  • Mount solar flashers for active nighttime alerts.
  • Attach chains with a special hook to create a security perimeter.

Application Areas

The aesthetics of the white color and the durability of the bellowed structure are ideal for the following areas:

• Hospital and health center parking lots
• Food production facilities and areas requiring cleanliness
• Dark colored asphalt roads (for contrast)
• Hotel and residence entrances
• Pedestrian paths within residential complexes

Product Technical Specifications

• Height: 100 cm
• Tube Diameter: 80 mm (8 cm)
• Base Diameter: 200 mm (20 cm)
• Weight: 1.2 kg
• Material: TPE S
• Color: White
• Reflective: High Intensity Grade (High Performance)
• Mounting: 3 Pieces Special Flanged Trifon Screws (10x100 mm)

Package Contents

• 1 Piece 100x8 cm White TPE Bellowed Delineator
• Mounting Set: 3 Pieces Special Flanged Trifon Screws and Plastic Wall Plugs (Included for free).

Installation Instructions

To fix the product to the ground in the most secure way:

1. The bollard is placed on the point of installation, and the ground is marked through the 3 holes in the base.
2. The marked points are drilled with a drill, and the wall plugs are driven into their sockets.
3. Installation is completed by tightening the special flanged (self-washer) trifon screws.
